String Harness
-
About String Harness
About String Harness

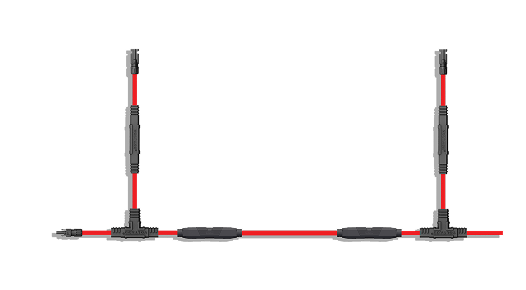

Our custom-engineered string harness streamline PV system design by consolidating multiple strings in a row. Tailored to your specific project, they reduce excess cabling, simplify layout, and accelerate installation. Pre-assembled and delivered plug-and-play on reels, our harnesses are built for durability and efficiency, helping you achieve reliable performance while lowering both CapEx and OpEx.
-
01Overmolds
T-, Y- and X-Kits feature an outer mold flame rating of V-0 / F1 and an inner mold flame rating of V-0.
-
02In-line Fuses
We offer fuse options ranging from 1A to 80A, featuring trusted brands.
-
ReducedMaterial usage
-
EnhancedInstallation Efficiency
-
100%Factory pre-assembled and tested
-
![692fff6b3c7fe11[1].svg](/Public/Uploads/uploadfile/images/20251218/692fff6b3c7fe11[1].svg)
5 YearsProduct warranty
Specifications & Key Benefits
-
All-copper string harness construction
-
2kV-ready design for the U.S. market
-
T / X / Y overmold options
-
IP68-rated protection
-
UL 9703 and CSA certified
-
2 PfG 1913 certified by TUV
-
US
-
Voltage Rating2000V DC
-
2kV CU Conductor Isc.12-6 AWG (35-86A)
-
Operating Temp.-40°C ~ 90°C
-
-
EU
-
Voltage Rating1500V DC
-
1.5kV CU Conductor Isc.4-16mm² (55-75A)
-
Operating Temp.-40°C ~ 85°C
-
